Kavian San'at Yazd Company
.jpg)
Kavian San'at Yazd Company
Kavian Sanat Yazd, a member of the Association of Electrical Panel Manufacturers, has started its activity since 1998 in the field of providing technical and engineering services, designing and manufacturing various types of industrial electrical panels, implementation and consulting in the field of industrial electricity. Using the technical knowledge of experienced engineers and specialized personnel and having the necessary machinery in this industry, using quality materials and raw materials, observing technical standards in accordance with current standards and relevant regulations, and after-sales service succeeded. Offering the best products and providing the best services to government agencies and industries (such as Tavanir, Telecommunications Co., oil and gas companies, water and sewage companies, manufacturing plants and hospital units, airports and subway companies). Also, due to the principle that customer satisfaction is the result of customer perception in a transaction or value relationship, for manufacturers in a tight market, competition has no choice but to attract the customer. In today's business environment, the customer is an active and influential member in all business activities. Because, if the goods and services meet the customer's expectations, it will create a feeling of satisfaction in him and the customer will play an essential role in the growth and survival of the company by continuing his purchase and introducing the service and product to others. Conversely, if the quality of goods or services does not meet customer expectations, it will lead to customer dissatisfaction and continued dissatisfaction will lead to reduced purchases, negative publicity, and ultimately the collapse and liquidation of the company. Therefore, Kavian Sanat Yazd Company with the slogan "We will not trade quality with anything" has based the principle of all its activities on full customer satisfaction.
Therefore, we need to be a good partner for those industrial units by announcing the readiness of services in the field of industry and production.
Some of the certificates obtained in Kavian Sanat Yazd Company:
- ISO 14001 standard or environmental management system: is one of the popular standards of the international organization ISO, which has been established in many organizations after the 9001 standard. This standard (which has requirements to protect the environment and prevent companies from polluting the environment) can be established in all organizations, both manufacturing and services.
This standard can also be a great cover for government laws and regulations in the field of environment. Because the requirements of this standard go beyond national laws and standards.
- ISO 9001 standard is called the quality management system standard. This standard seeks to create a system that manages quality throughout the organization.
- ISO OHSAS 18001 is a standard used in occupational safety and health management system and enables the organization to control its risks and strengthen its performance in this area. This standard provides a systematic solution to identify hazards and then reduce or eliminate the risk of these hazards.
Annual production capacity:
1- Medium pressure boards of 500 devices
2. Low pressure boards of 800 devices
3- 500 capacitive automatic panels
4- The capacity of the process board is 2000 units
Field of activity of the company:
1- Power distribution boards, medium pressure MV power and low LV pressure
2-Boards of MCC engine control centers))
3. Process control panels
4. Lighting power panels
5. Capacitor banks correction of power factor equipped with regulator
6- Transfer switchboards with automatic start of diesel generator
7. Water distribution boards for waterproof and dustproof areas
8- Types of low wall pressure panels
9-Types of industrial charger frames
Engineering Design Unit:
The first step in making a panel is the optimal design of the panel and the arrangement of its parts, which is the responsibility of the design and engineering unit. Panel design is divided into several parts: frame design, electrical map design and equipment selection. In this unit, using EPLAN P8 separation software, the most advanced electrical panel design software in the world is done. Among the unique features of this software is high speed in design and the possibility of creating macros in the environment of this software, which greatly speeds up the design process. Also in this software, it provides the possibility of preparing multiple reports, including diagram terminal, part list, INDEX report and TABE OF CONTENT, etc. In addition, using the list connection method in the output of this software and using it instead of the wire number makes the maintenance of the panel very easy and minimizes the work error.
Frame design:
The frames are designed based on the received technical specifications, including mechanical, painting, assembly, testing, and for continuous work in the environmental conditions of the installation site.
Electrical drawings:
This map includes:
One-line diagram design, schematic drawings of the panels, front view of the panel along with the equipment used on the panel and the code of each equipment in accordance with the international standard IEC60439 is done in this unit.
Mechanical unit:
The task of designing mechanical parts of the panel and special mechanical items in these panels according to the standard is the responsibility of this unit. In this unit, using up-to-date software such as Solid and AutoCAD, it designs the mechanical parts of the panel and the capabilities of this software. Software such as various reports and macro construction are used to increase the speed in designing and building panels. These boards are made according to the Siemens design, where each cell is separate. Due to the design, it has high strength against short circuit currents. All cells have a safety valve to limit the internal pressure when a short circuit occurs inside the panel.
Documents provided with the board:
As built drawings related to panels (the latest revision related to drawings on which the panel has been produced and tested)
Catalog of parts installed in the final test sheet of the panels (electrical and mechanical items that must be observed according to IEC 60439 standard)
Installation instructions (items that must be observed in the installation and maintenance of the panel are given in this instruction)
Relevant CD containing the above documents (AS BUILT map, test sheet, catalogs, etc.)
During the construction of the panel, the technical and engineering unit is in constant contact with the employer or the employer's representatives and performs all construction and design items in coordination with them and solves possible defects and problems with their coordination.
Equipment selection:
The technical specifications of the equipment and raw materials for using the best type in terms of quality and economic efficiency are done according to the request of the employer. Also, the technical and engineering issues related to the equipment are thoroughly reviewed and the best offer is presented to the employer.
Warehousing and management of equipment and raw materials:
Special warehousing software is used to facilitate warehousing and proper management of supplies and raw materials. The use of these softwares reduces errors and facilitates the inspection and management of the warehouse system.
The software used in warehousing is the leading software that allows the classification of warehouse inventory. In this software, inventory and raw materials in different groups (including tools, keys and equipment are classified) along with the possibility provides list search. This increases the quality and speed and prevents possible errors.
Mechanical unit:
The task of designing mechanical parts of the panel and special mechanical items in these panels according to the standard is the responsibility of this unit. In this unit, using up-to-date software such as Solid and AutoCAD, it designs the mechanical parts of the panel and the capabilities of this software. Software such as various reports and macro construction are used to increase the speed in designing and building panels. These boards are made according to the Siemens design, where each cell is separate. Due to the design, it has high strength against short circuit currents. All cells have a safety valve to limit the internal pressure when a short circuit occurs inside the panel.
Documents provided with the board:
As built drawings related to panels (the latest revision related to drawings on which the panel has been produced and tested)
Catalog of parts installed in the final test sheet of the panels (electrical and mechanical items that must be observed according to IEC 60439 standard)
Installation instructions (items that must be observed in the installation and maintenance of the panel are given in this instruction)
Relevant CD containing the above documents (AS BUILT map, test sheet, catalogs, etc.)
During the construction of the panel, the technical and engineering unit is in constant contact with the employer or the employer's representatives and performs all construction and design items in coordination with them and solves possible defects and problems with their coordination.

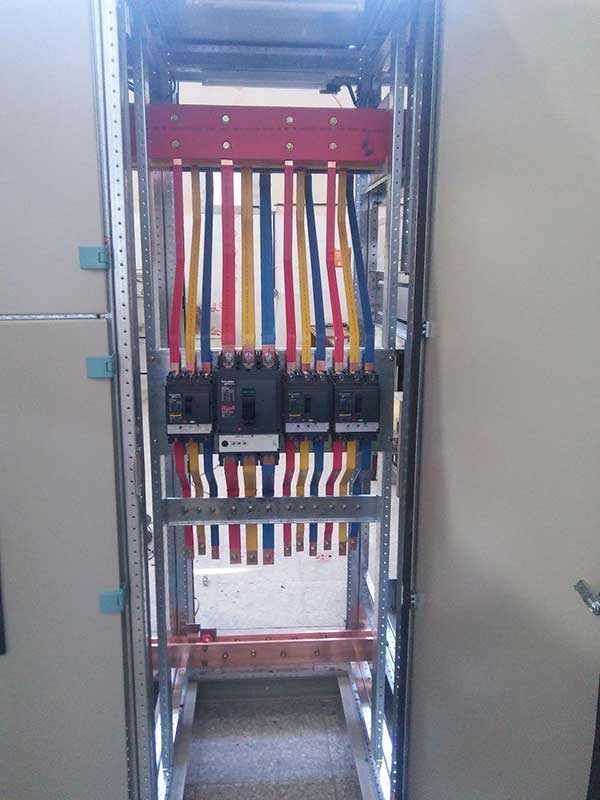

Low pressure boards:
The skeleton of these panels is made in the form of a Rital element design and in the form of all bolts and nuts, which in any case, due to the mesh profile, can be very resilient to install the equipment.

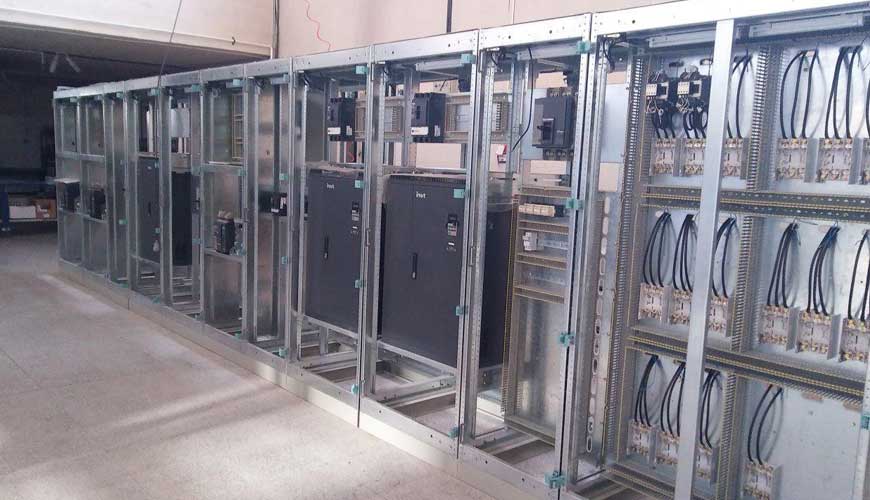

Technical specifications of standing boards:
Standing boards are in the form of Rital design, in which the relevant profile is bent in one piece and continuously. They are also mesh, which allows you to install the parts in the desired part. All sheets used in these boards are oil sheets, which are of the blue and export type of Mobarakeh Steel of Isfahan, the thickness of which is as follows.
The thickness of the front door plate, the chassis tray under the panel is 2 mm, the side doors, the back and the roof are 1.5 mm.
All the doors and coverings of the panels are made of injected foam, moisture and dust.
The front door lock is in the form of a switch and a lever and is of a high quality external type and is fastened to the structure by a special strap at the four points of the door.
There are four hooks on the roof of the panel for easy transportation.
Placing a special profile behind the door prevents distortion when closed and closed.
There are all the boards behind the local door to put the map of the cells.
At the point where the cables cross the gland, it is suitable for passing and holding the cables.
All panels have a separate frame that is connected to the body of the panel with bolts and nuts and will be used to install the panel on the foundation.

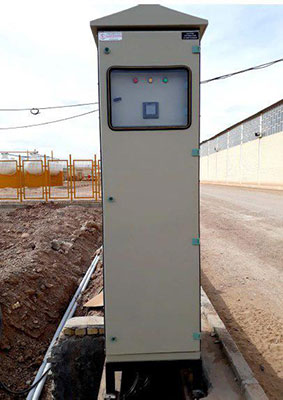

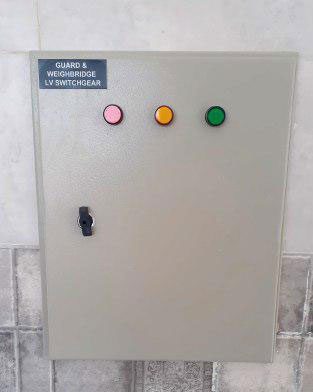

Technical specifications of wall panels:
The panel door will be connected to the body by a hidden hinge, which allows the panel to be hinged from both sides. The boards have gland plates at the bottom and top that are punched according to the needs of the employer.
Behind the door, there is a mesh profile that allows the canal bridge to be closed at any point.
The earth screw is installed on the body and door of the panel.
Technical specifications for washing and painting:
After manufacturing all metal parts and quality control, the washing steps are done by immersion method as follows before spraying the paint.
At this stage, the parts are placed in a degreaser tank with a temperature of 70-75 degrees Celsius. In this way, the parts are free of any fat. After degreasing, the parts are washed with warm water.
At this stage, the parts are placed in an iron phosphate chamber with a temperature of 50-60 degrees. This forms a uniform series of crystals on the metal surface to prevent corrosion of the metal. The parts are then washed with cold water. Then they get dried. All parts are electrostatically coated by powder spraying, which is done in one step. After that, the paint is baked in the oven and prepared. The minimum thickness of the paint at this stage is 70 microns.
quality control unit:
Inspection and performing the necessary tests to ensure the flawless operation of the panel and compliance with the standards requested by the employer is one of the tasks of this unit. These are listed in full in the attached tables. Also, all electrical components including switches, contactors, protection relays as well as raw materials such as sheets, ingots, wires and cables, glands and input of tools, etc., before entering the warehouse and allocating to the relevant project, get supervised and approved by the expert of each department. The relevant person in charge receives the goods according to the order code and makes sure of the quality of the mentioned items. After all these steps the goods can be used.
1- Medium pressure boards of 500 devices
2. Low pressure boards of 800 devices
3- 500 capacitive automatic panels
4- The capacity of the process board is 2000 units
Field of activity of the company:
1- Power distribution boards, medium pressure MV power and low LV pressure
2-Boards of MCC engine control centers))
3. Process control panels
4. Lighting power panels

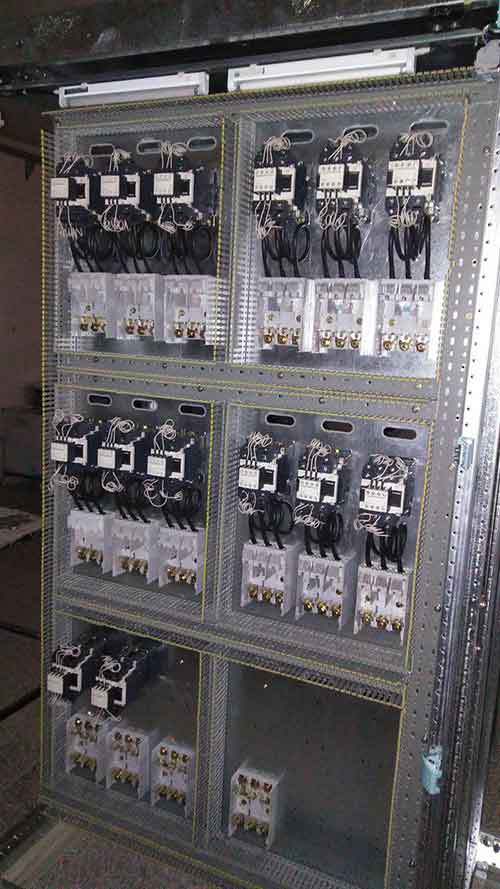

5. Capacitor banks correction of power factor equipped with regulator
6- Transfer switchboards with automatic start of diesel generator
7. Water distribution boards for waterproof and dustproof areas
8- Types of low wall pressure panels
9-Types of industrial charger frames
Engineering Design Unit:
The first step in making a panel is the optimal design of the panel and the arrangement of its parts, which is the responsibility of the design and engineering unit. Panel design is divided into several parts: frame design, electrical map design and equipment selection. In this unit, using EPLAN P8 separation software, the most advanced electrical panel design software in the world is done. Among the unique features of this software is high speed in design and the possibility of creating macros in the environment of this software, which greatly speeds up the design process. Also in this software, it provides the possibility of preparing multiple reports, including diagram terminal, part list, INDEX report and TABE OF CONTENT, etc. In addition, using the list connection method in the output of this software and using it instead of the wire number makes the maintenance of the panel very easy and minimizes the work error.
Frame design:
The frames are designed based on the received technical specifications, including mechanical, painting, assembly, testing, and for continuous work in the environmental conditions of the installation site.
Electrical drawings:
This map includes:
One-line diagram design, schematic drawings of the panels, front view of the panel along with the equipment used on the panel and the code of each equipment in accordance with the international standard IEC60439 is done in this unit.
Mechanical unit:
The task of designing mechanical parts of the panel and special mechanical items in these panels according to the standard is the responsibility of this unit. In this unit, using up-to-date software such as Solid and AutoCAD, it designs the mechanical parts of the panel and the capabilities of this software. Software such as various reports and macro construction are used to increase the speed in designing and building panels. These boards are made according to the Siemens design, where each cell is separate. Due to the design, it has high strength against short circuit currents. All cells have a safety valve to limit the internal pressure when a short circuit occurs inside the panel.
Documents provided with the board:
As built drawings related to panels (the latest revision related to drawings on which the panel has been produced and tested)
Catalog of parts installed in the final test sheet of the panels (electrical and mechanical items that must be observed according to IEC 60439 standard)
Installation instructions (items that must be observed in the installation and maintenance of the panel are given in this instruction)
Relevant CD containing the above documents (AS BUILT map, test sheet, catalogs, etc.)
During the construction of the panel, the technical and engineering unit is in constant contact with the employer or the employer's representatives and performs all construction and design items in coordination with them and solves possible defects and problems with their coordination.
Equipment selection:
The technical specifications of the equipment and raw materials for using the best type in terms of quality and economic efficiency are done according to the request of the employer. Also, the technical and engineering issues related to the equipment are thoroughly reviewed and the best offer is presented to the employer.
Warehousing and management of equipment and raw materials:
Special warehousing software is used to facilitate warehousing and proper management of supplies and raw materials. The use of these softwares reduces errors and facilitates the inspection and management of the warehouse system.
The software used in warehousing is the leading software that allows the classification of warehouse inventory. In this software, inventory and raw materials in different groups (including tools, keys and equipment are classified) along with the possibility provides list search. This increases the quality and speed and prevents possible errors.
Mechanical unit:
The task of designing mechanical parts of the panel and special mechanical items in these panels according to the standard is the responsibility of this unit. In this unit, using up-to-date software such as Solid and AutoCAD, it designs the mechanical parts of the panel and the capabilities of this software. Software such as various reports and macro construction are used to increase the speed in designing and building panels. These boards are made according to the Siemens design, where each cell is separate. Due to the design, it has high strength against short circuit currents. All cells have a safety valve to limit the internal pressure when a short circuit occurs inside the panel.
Documents provided with the board:
As built drawings related to panels (the latest revision related to drawings on which the panel has been produced and tested)
Catalog of parts installed in the final test sheet of the panels (electrical and mechanical items that must be observed according to IEC 60439 standard)
Installation instructions (items that must be observed in the installation and maintenance of the panel are given in this instruction)
Relevant CD containing the above documents (AS BUILT map, test sheet, catalogs, etc.)
During the construction of the panel, the technical and engineering unit is in constant contact with the employer or the employer's representatives and performs all construction and design items in coordination with them and solves possible defects and problems with their coordination.
Low pressure boards:
The skeleton of these panels is made in the form of a Rital element design and in the form of all bolts and nuts, which in any case, due to the mesh profile, can be very resilient to install the equipment.
Technical specifications of standing boards:
Standing boards are in the form of Rital design, in which the relevant profile is bent in one piece and continuously. They are also mesh, which allows you to install the parts in the desired part. All sheets used in these boards are oil sheets, which are of the blue and export type of Mobarakeh Steel of Isfahan, the thickness of which is as follows.
The thickness of the front door plate, the chassis tray under the panel is 2 mm, the side doors, the back and the roof are 1.5 mm.
All the doors and coverings of the panels are made of injected foam, moisture and dust.
The front door lock is in the form of a switch and a lever and is of a high quality external type and is fastened to the structure by a special strap at the four points of the door.
There are four hooks on the roof of the panel for easy transportation.
Placing a special profile behind the door prevents distortion when closed and closed.
There are all the boards behind the local door to put the map of the cells.
At the point where the cables cross the gland, it is suitable for passing and holding the cables.
All panels have a separate frame that is connected to the body of the panel with bolts and nuts and will be used to install the panel on the foundation.
Technical specifications of wall panels:
The panel door will be connected to the body by a hidden hinge, which allows the panel to be hinged from both sides. The boards have gland plates at the bottom and top that are punched according to the needs of the employer.
Behind the door, there is a mesh profile that allows the canal bridge to be closed at any point.
The earth screw is installed on the body and door of the panel.
Technical specifications for washing and painting:
After manufacturing all metal parts and quality control, the washing steps are done by immersion method as follows before spraying the paint.
At this stage, the parts are placed in a degreaser tank with a temperature of 70-75 degrees Celsius. In this way, the parts are free of any fat. After degreasing, the parts are washed with warm water.
At this stage, the parts are placed in an iron phosphate chamber with a temperature of 50-60 degrees. This forms a uniform series of crystals on the metal surface to prevent corrosion of the metal. The parts are then washed with cold water. Then they get dried. All parts are electrostatically coated by powder spraying, which is done in one step. After that, the paint is baked in the oven and prepared. The minimum thickness of the paint at this stage is 70 microns.
quality control unit:
Inspection and performing the necessary tests to ensure the flawless operation of the panel and compliance with the standards requested by the employer is one of the tasks of this unit. These are listed in full in the attached tables. Also, all electrical components including switches, contactors, protection relays as well as raw materials such as sheets, ingots, wires and cables, glands and input of tools, etc., before entering the warehouse and allocating to the relevant project, get supervised and approved by the expert of each department. The relevant person in charge receives the goods according to the order code and makes sure of the quality of the mentioned items. After all these steps the goods can be used.
